How to Register an App in Microsoft Entra ID for QRCodeChimp

If you choose custom branding for QRCodeChimp’s Microsoft Entra ID or SSO integration, you need to create and register an app in Microsoft Entra ID. This app provides the required credentials that allow QRCodeChimp to connect with your Microsoft environment using your branded login setup.

Once the app is registered, you can collect the required details, including the Application (Client) ID, Client Secret, and Tenant ID.

This guide walks you through the steps to create the app registration in Microsoft Entra ID and collect the required details for QRCodeChimp.

You can also watch this video:

Steps to register Microsoft Entra ID app

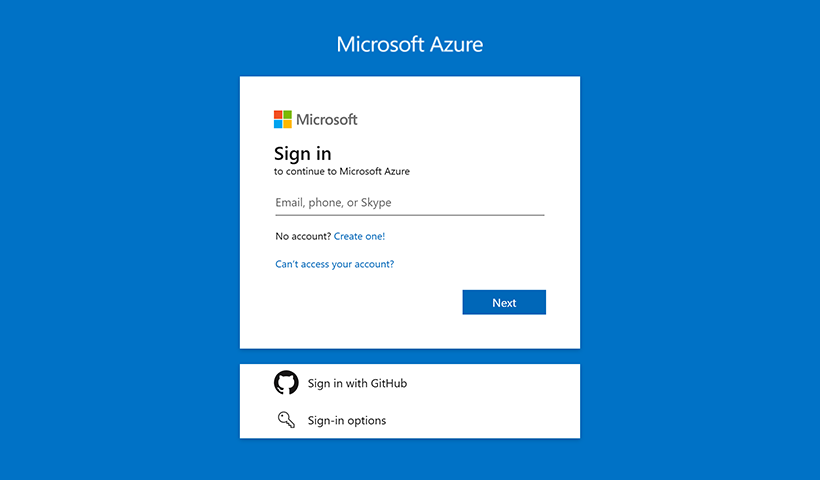

Step 1: Go to the Azure Portal and login with your admin account.

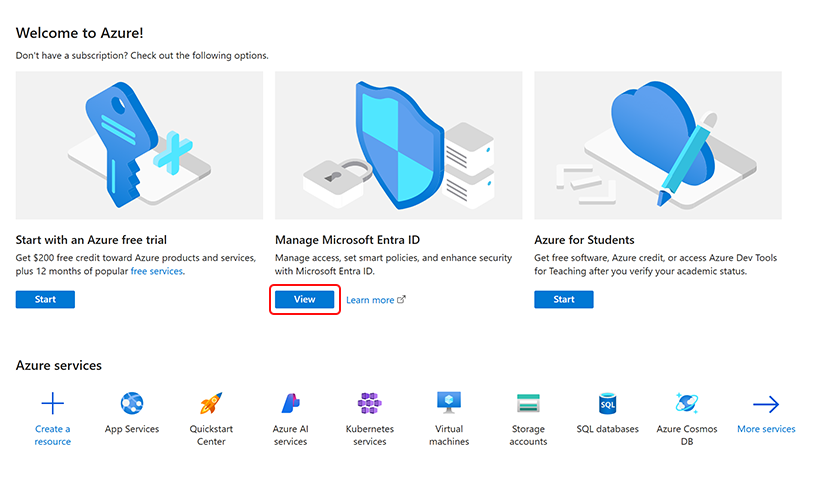

Step 2: On the dashboard, locate Manage Microsoft Entra ID and click View.

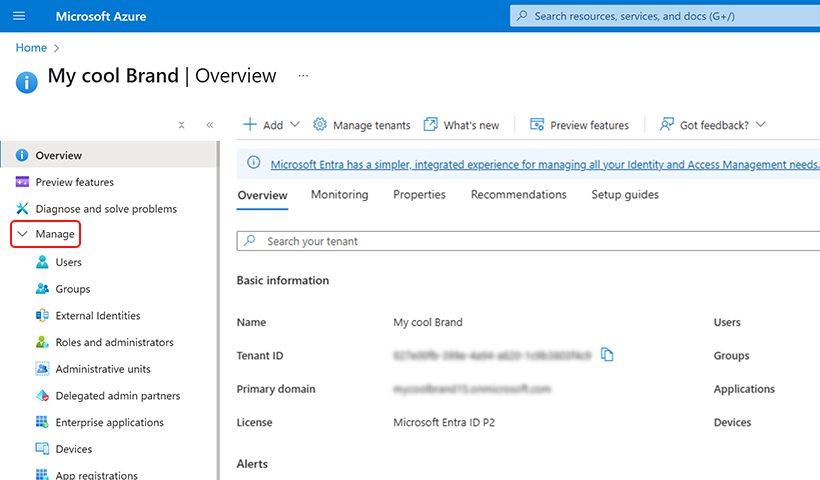

Step 3: In the left menu, click Manage.

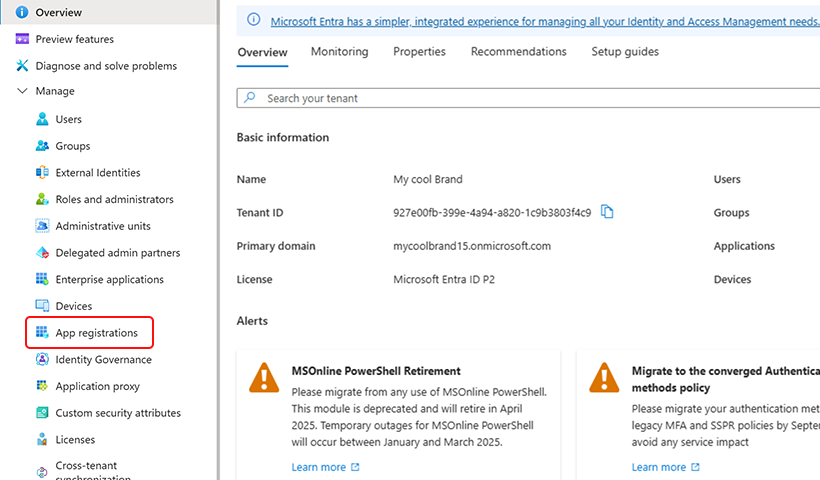

Step 4: Click App registrations from the dropdown.

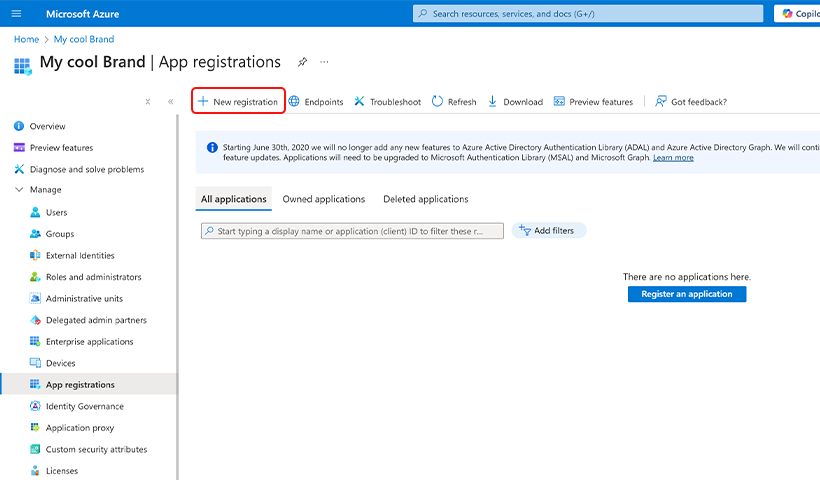

Step 5: Click New registration to create a new app.

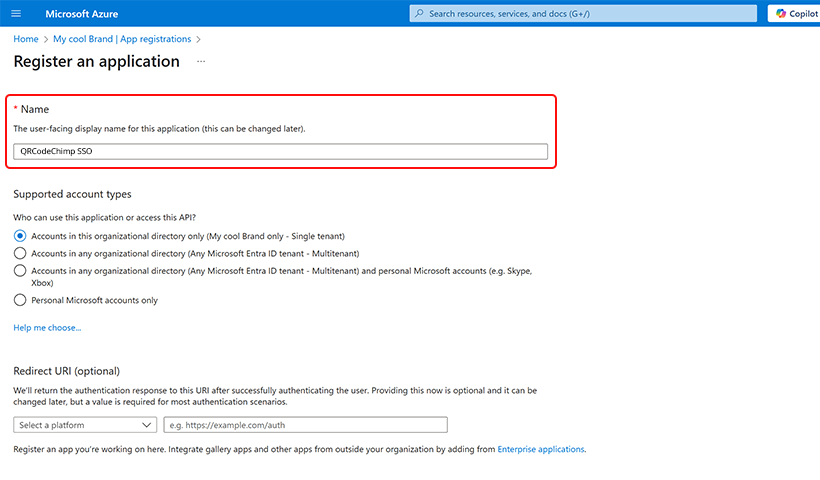

Step 6: Give your app a name (e.g., QRCodeChimp SSO).

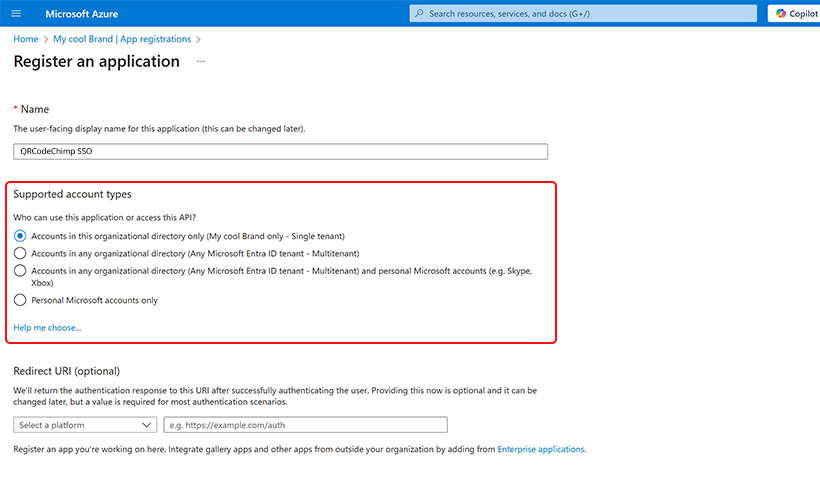

Step 7: Select who can use the app. Most of the time, select the default: Accounts in this organizational directory only.

Step 8: Navigate to the Redirect URI section.

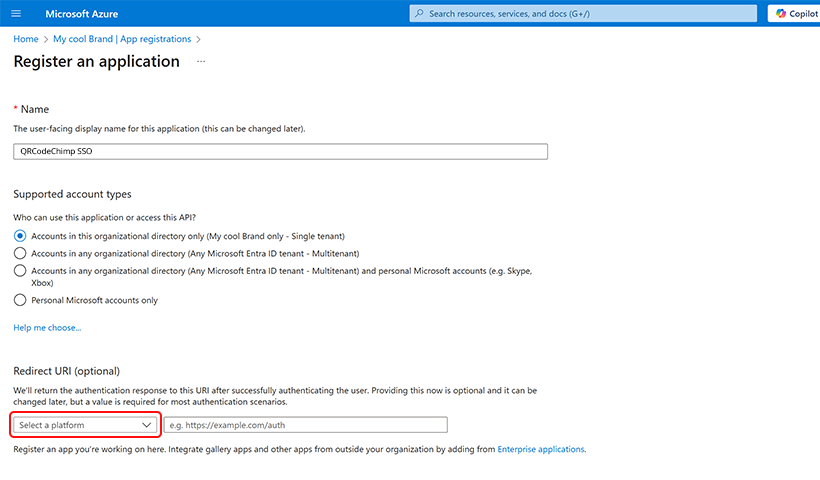

Step 9: Click Select a platform.

Step 10: Select Single-page application (SPA) from the dropdown menu.

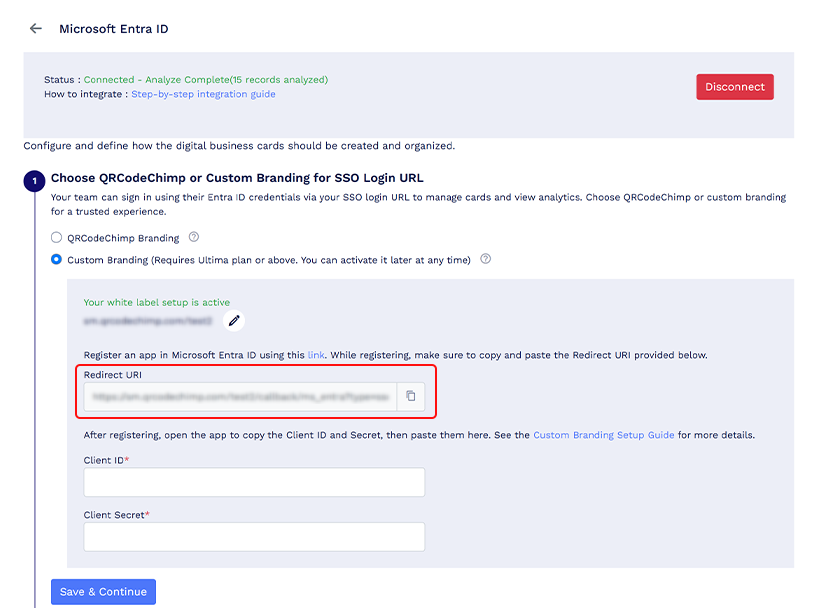

Step 11.1: Copy the Redirect URI from the QRCodeChimp integration page based on the setup you are configuring. If you are setting up Entra ID integration, copy it from the Entra ID integration page. If you are setting up Microsoft SSO integration, copy it from the SSO integration page.

It will look similar to:

https://yourwldomain/callback/ms_entra?type=sso_login

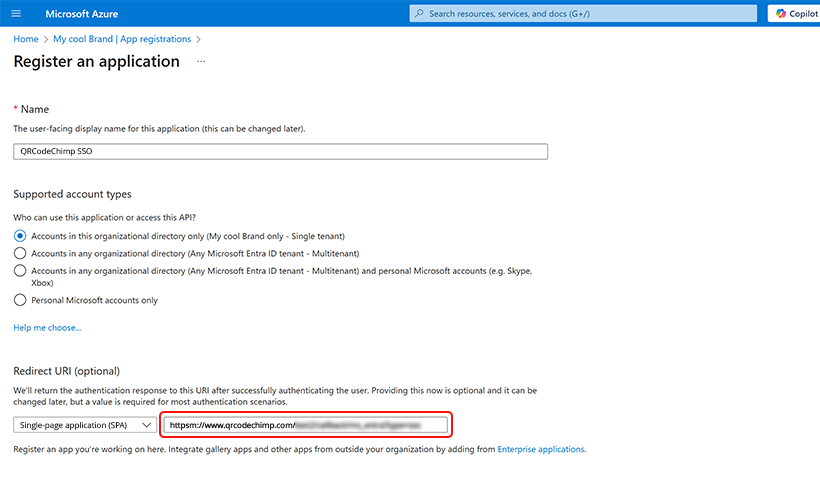

Step 11.2: Paste it here under Single-page application (SPA) > Redirect URI.

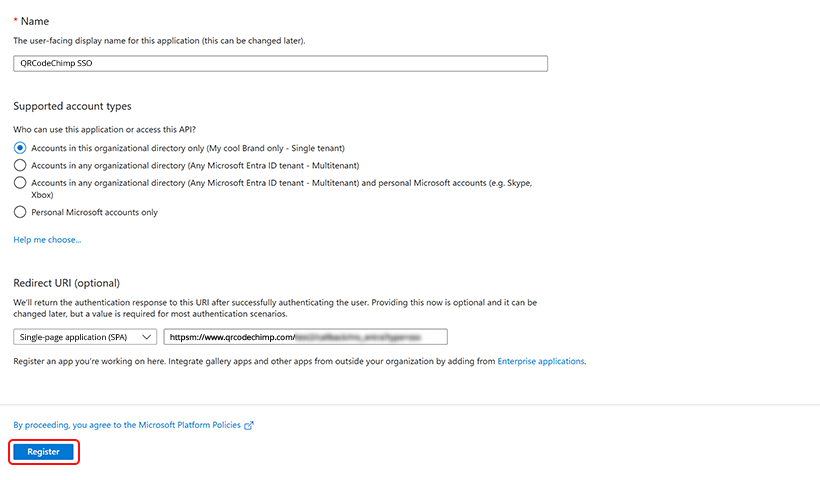

Step 12: Click Register to complete the app creation process.

The application overview page will open.

Get Client ID and Client Secret from Certificates & secrets

You should be on the Overview page. Follow the steps:

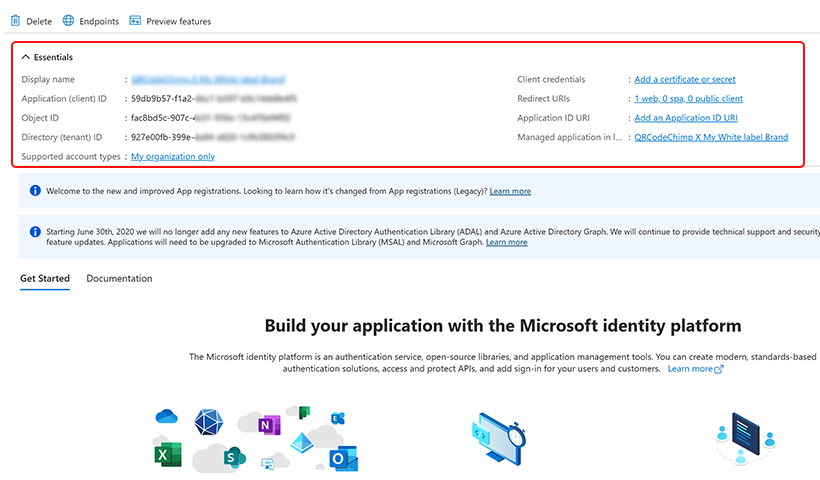

Step 1: Locate the Essentials section.

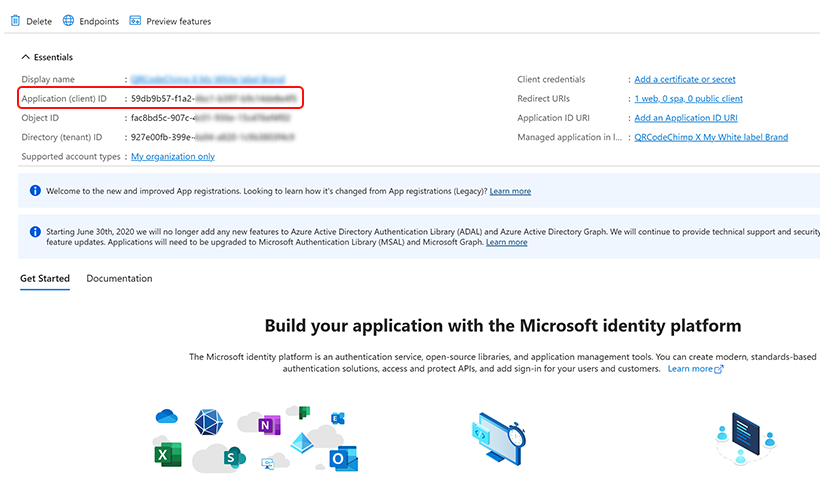

Step 2.1: Copy Application (client) ID (this is your Client ID for QRCodeChimp).

Step 2.2: Paste the copied Application (client) ID in QRCodeChimp’s Client ID field.

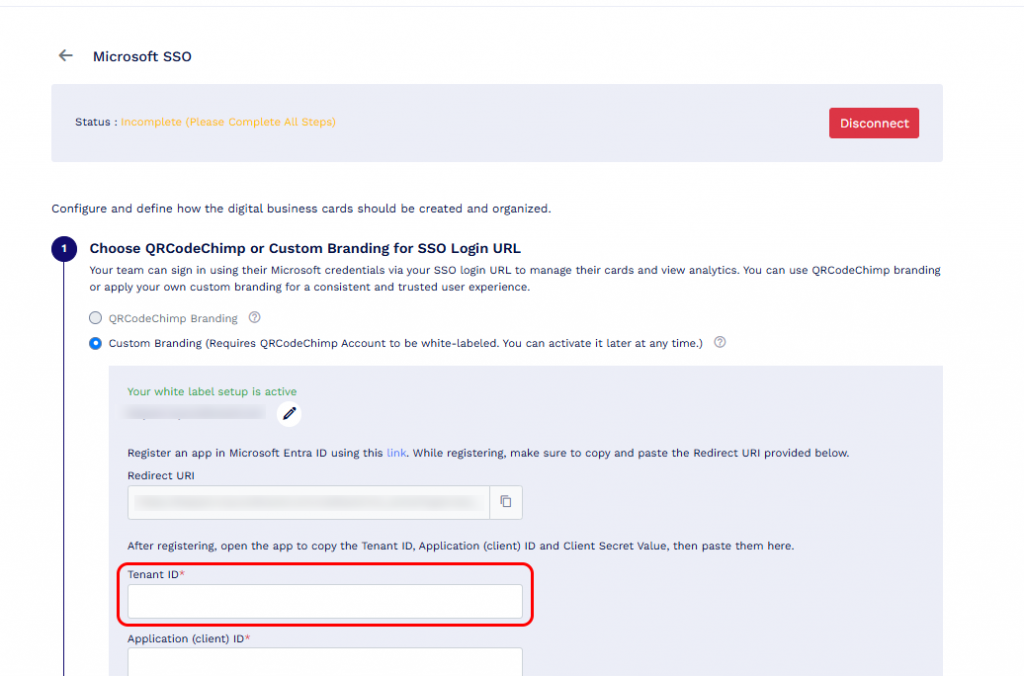

Step 2.3 (Only for SSO Integration): Copy Directory (tenant) ID (this is your Tenant ID for QRCodeChimp) and paste it in QRCodeChimp’s Tenant ID field.

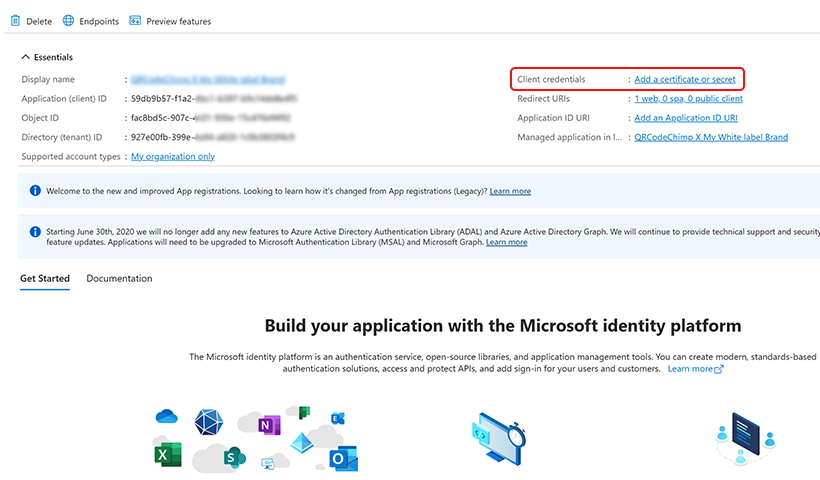

Step 3: Click Add a certificate or secret.

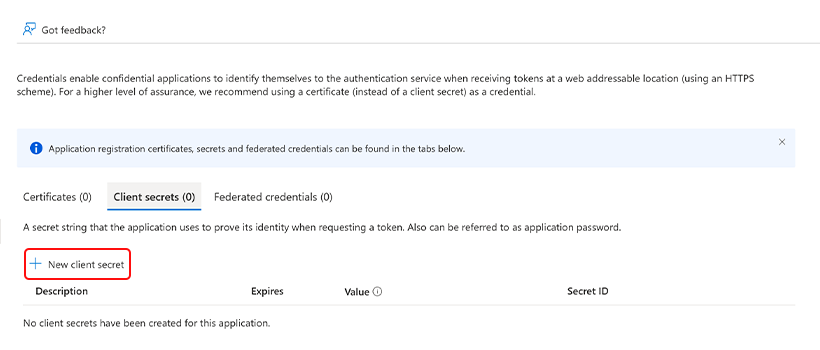

Step 4: Click New client secret.

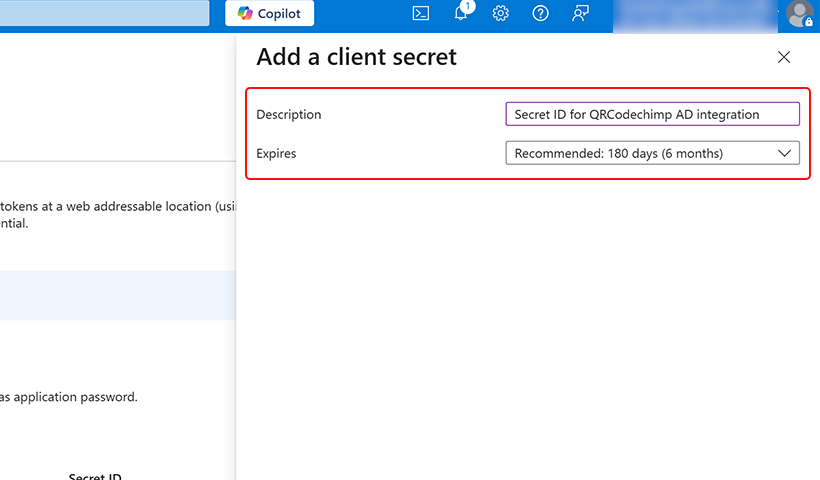

Step 5: Enter description and expiration date.

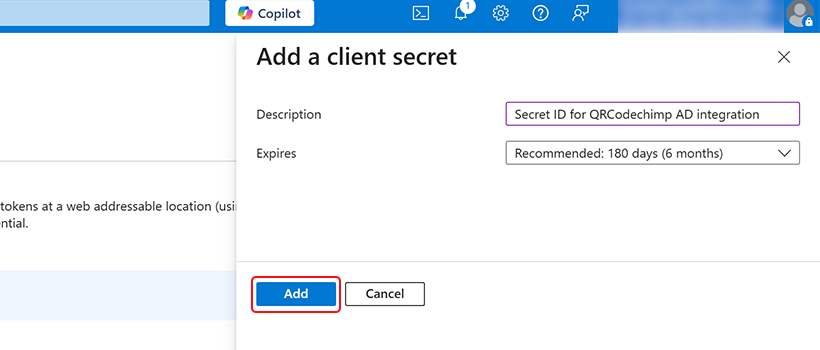

Step 6: Click Add.

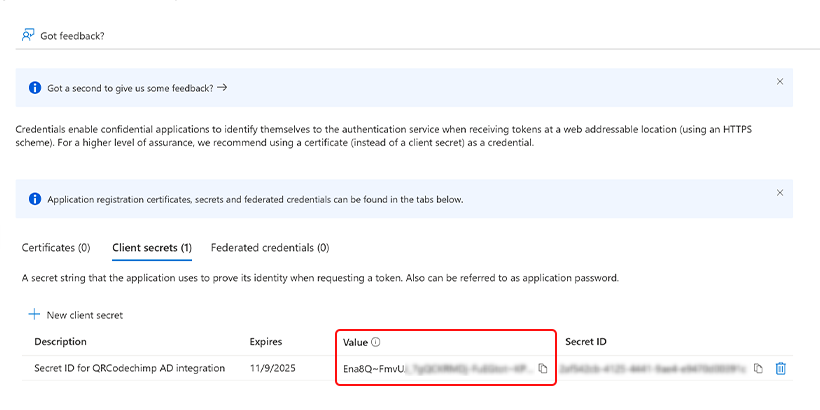

Step 7.1: Locate Value and copy it. You won’t see it again after you leave the page.

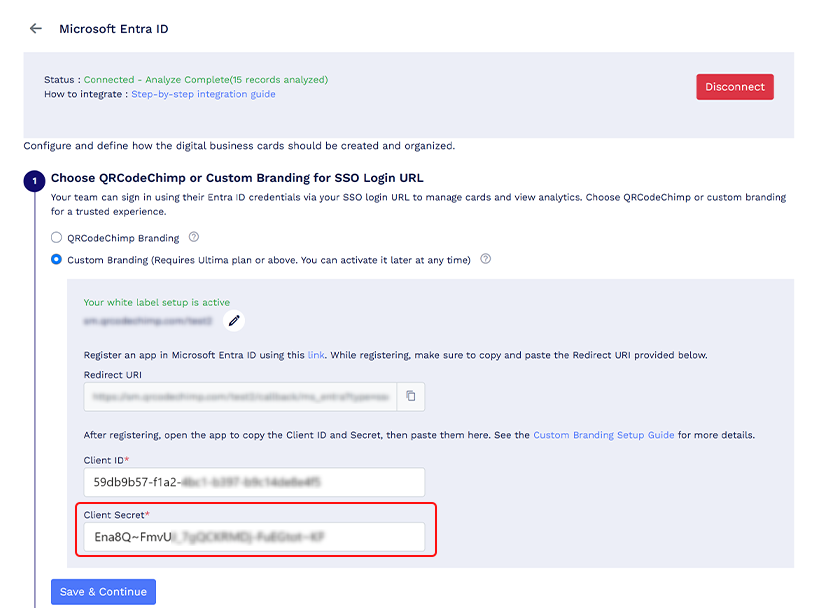

Step 7.2: Paste the copied value in QRCodeChimp’s Client Secret field.

Connect your Microsoft Entra ID app to QRCodeChimp

Now, all you have to do is visit Steps to Integrating Microsoft Entra ID (Azure ID) with QRCodeChimp.

Your Entra ID app is now linked to QRCodeChimp.

Wrap up

Congrats! You’ve successfully connected your Microsoft Entra ID app with QRCodeChimp. Now, users can easily log in securely and smoothly using your organization’s Active Directory. Remember, keep those client secrets private. If anything changes or you need help in the future, simply revisit your Entra ID setup and update QRCodeChimp.
